Summary

The SPEEDX2 2407E motor is tailored for quick responsiveness in advanced flight applications, featuring an optimized rotor and stator gap. Its all-black design and extensive cut-out structure enhance heat dissipation. Constructed from aviation-grade aluminum alloy using precision CNC molding, this motor is lightweight and durable.

Feature

Reduced rotor-stator gap ensures rapid response for seamless freestyle flying.
The fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance.
Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design.

Specifications

Model: SPEEDX2 2407E Motor

KV: 1750

Max Watt: 972.7W

Peak Current: 49A

Interphase Resistance: 38ohm

Propeller: 5-6inch

Magnet: N52H

Bearing: NMB/NSK

Stator Configuration: 12N14P

Dimension: D34*30mm

Shaft Diameter：ф5mm

Shaft Length：13.5mm

Mounting Hole Size：16x16mm

Wire Specification: 20AWG/150mm

Compatible ESC: 60A/6S

Input Voltage：6S

Winding: Single-strand copper winding

Color: Black

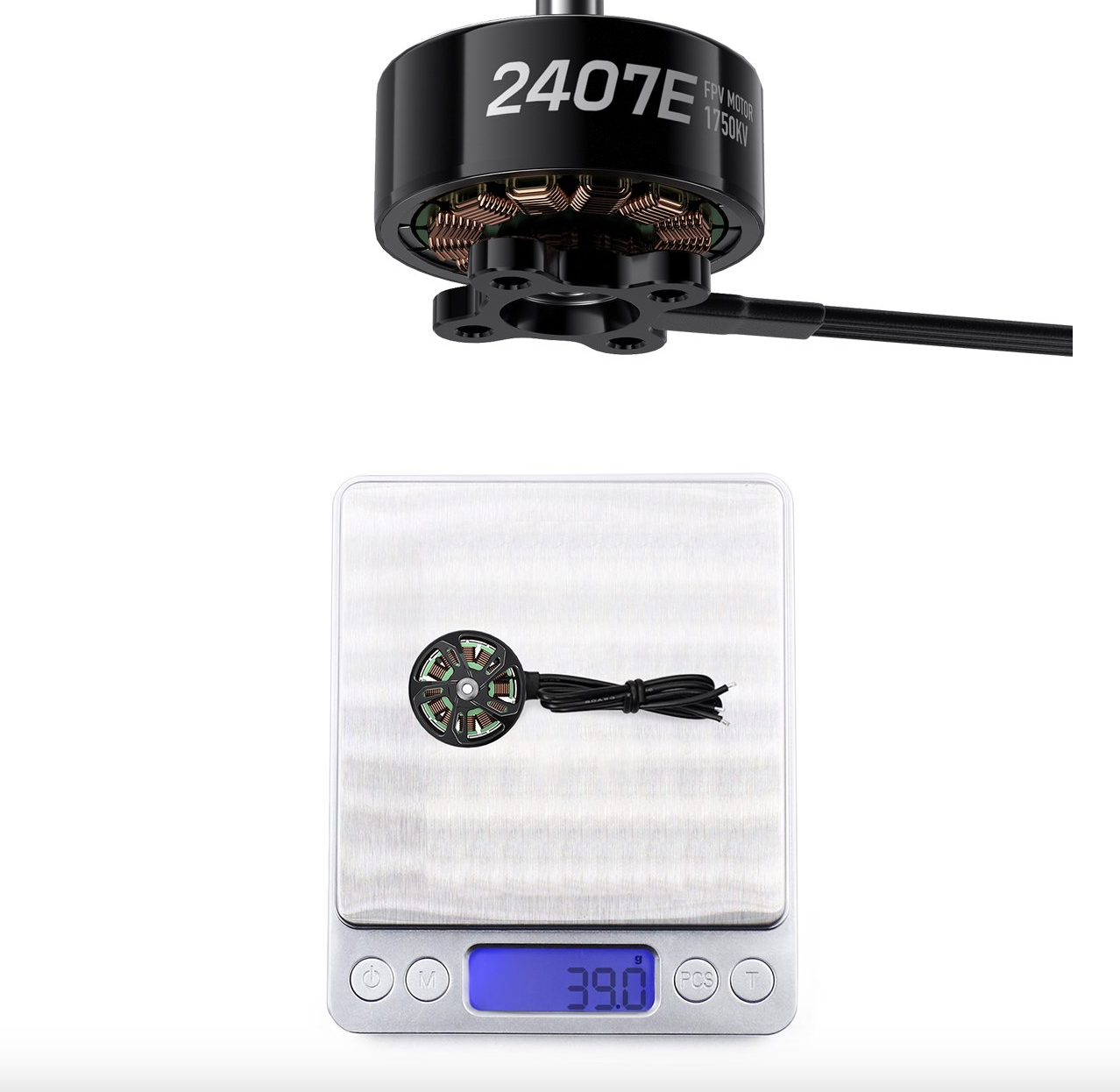

Weight: 39g (including wire)

Compatible Models: Suitable for 5inch-6inch racing FPV quads

GEPRC SPEEDX2 2407E 1750KV Motor brushless
